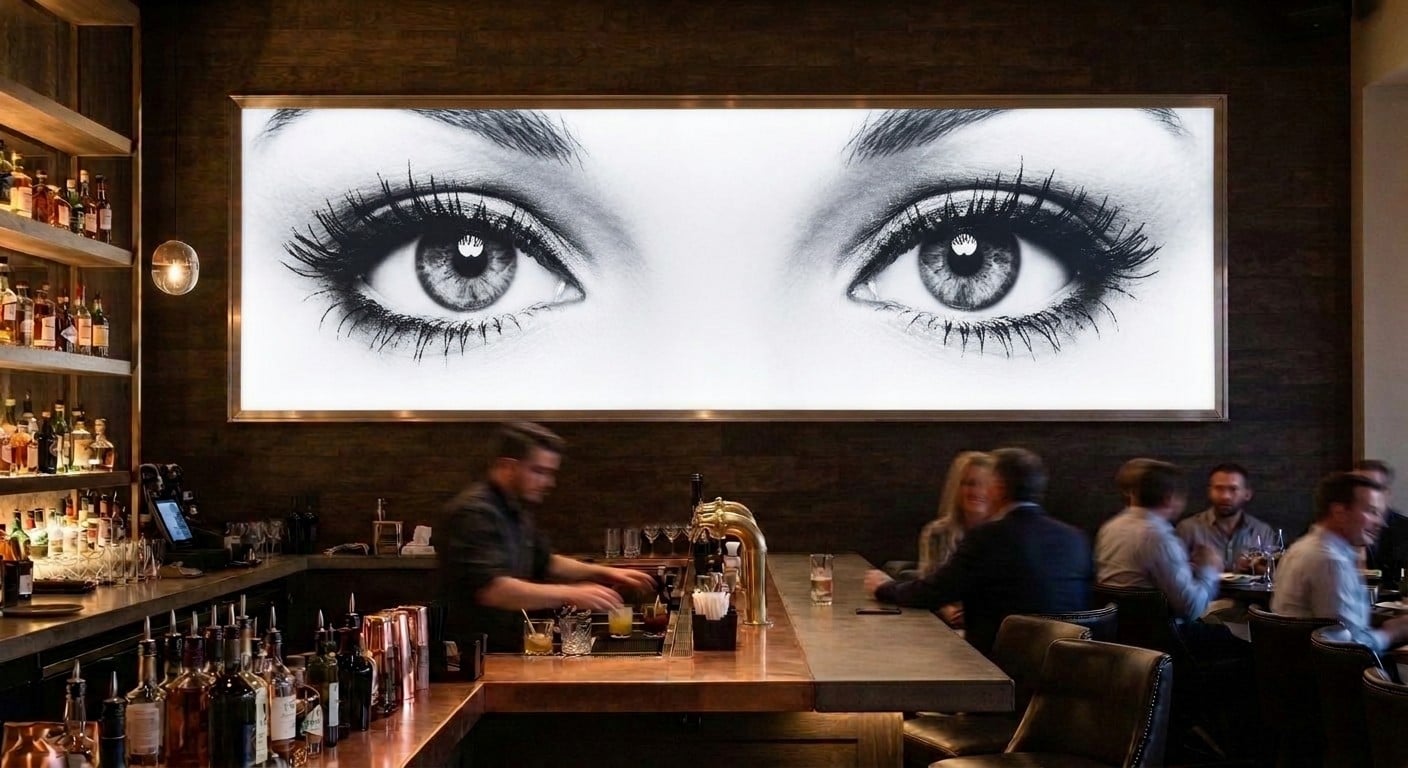

Strata LED strip matrix — bar feature wall

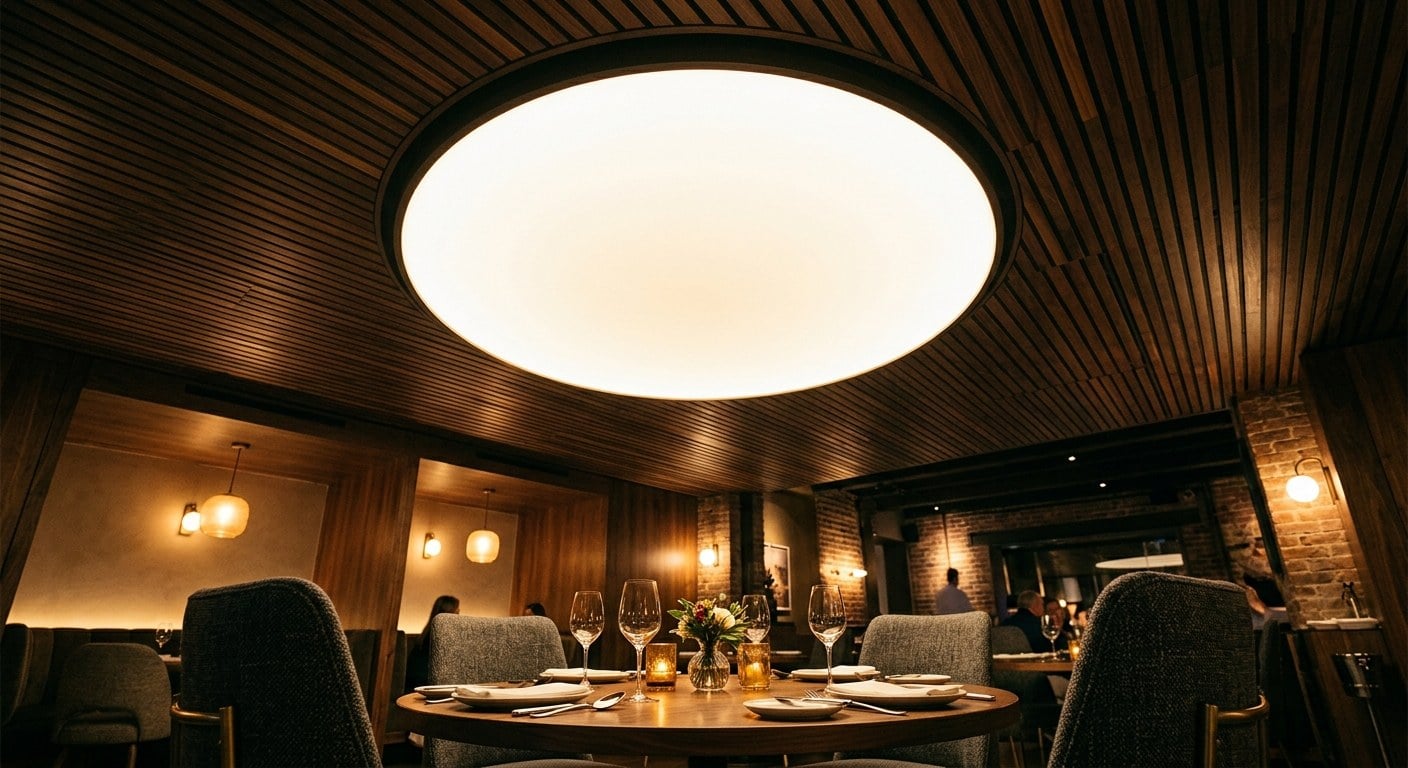

Strata LED strip matrix — restaurant ceiling

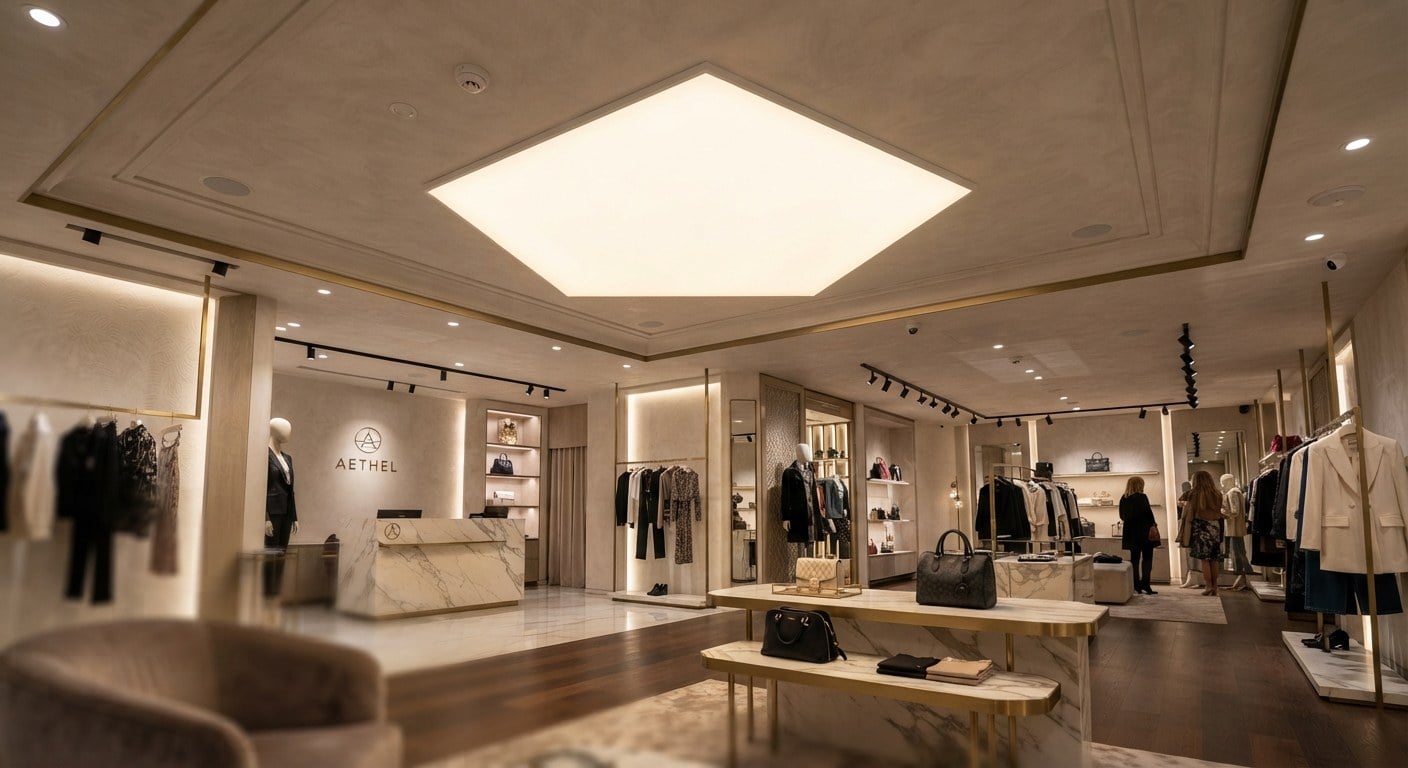

Strata LED strip matrix — retail ceiling

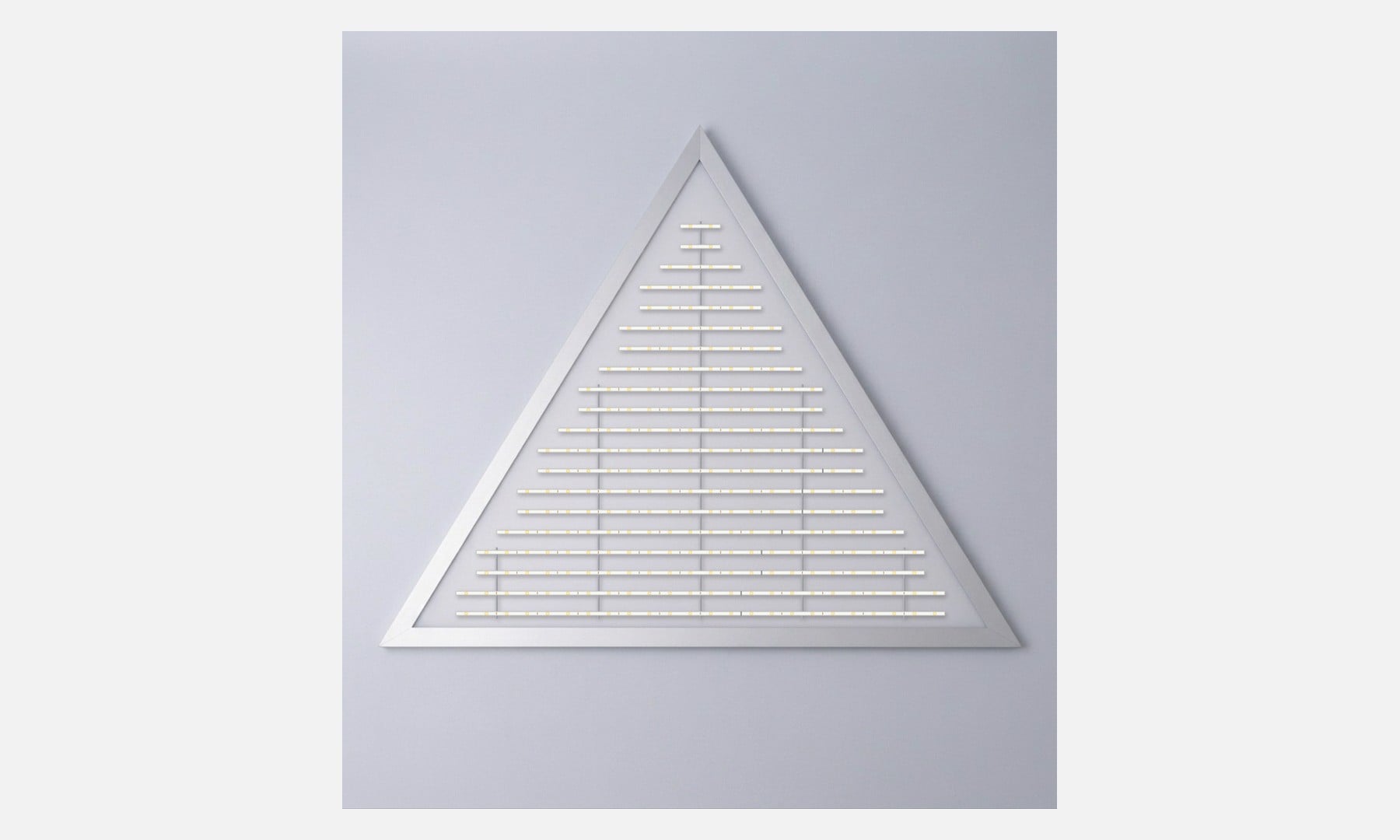

Strata LED strip matrix — triangle matrix

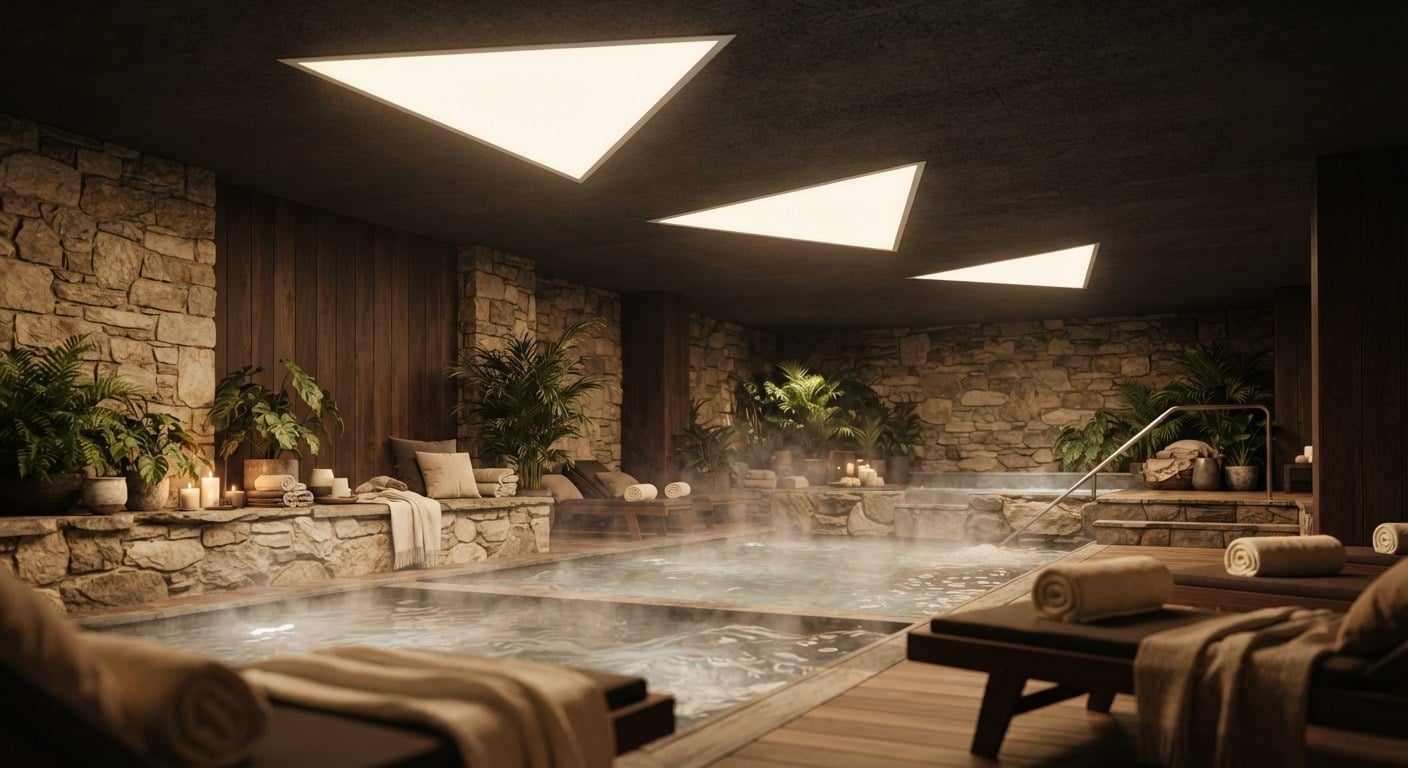

Strata LED strip matrix — backer options

Strata is a scalable LED strip matrix that delivers bright, even backlighting across large surfaces. Choose Static White, Color Tunable, or RGBW, then finish it with fabric, glass, acrylic, stone, or nearly any translucent material the design calls for. Units sit side by side to cover entire walls and ceilings, and the strip matrix nests inward to fill triangles, pentagons, and fully custom shapes.

Downloads:

Find Your Local Rep Now

Strata Features

Additional Features

• Scalable LED strip matrix — uniform, high-output backlighting across large surfaces
• Three configurations: Static White, Color Tunable, and RGBW
• RGBW models combine full RGB color with a dedicated white channel
• 77″ × 96″ (1960 × 2438 mm) per unit — units sit side by side for larger walls and ceilings
• Not limited to rectangles: strips nest inward to fill triangles, pentagons, diamonds, and custom outlines
• Field-cuttable strips: 140 mm increments (Static & Tunable), 70 mm (RGBW)

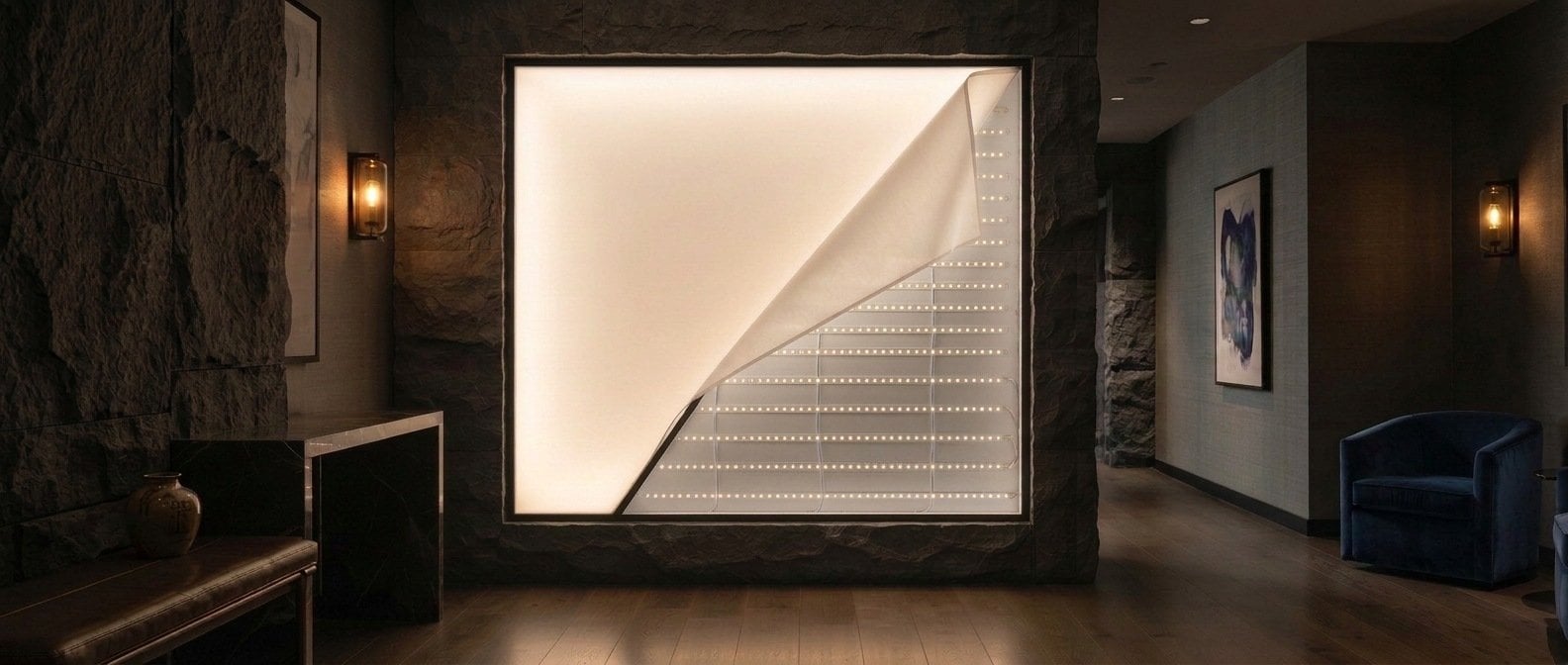

• Backlights fabric, glass, acrylic, stone, wood veneer, or nearly any translucent finish
• Backer options: Standard (no backer) or Metal — Acoustic backer coming soon
• UL listed for architectural applications, UL recognized for signage, RoHS compliant
• 50,000+ hour lifespan — virtually maintenance-free once installed

Power Specifications

• 24VDC standard — compatible with standard EOS drivers and controllers
• Static White: 10 W/sq ft
• Color Tunable: 14 W/sq ft
• RGBW: 6 W/sq ft
• Driver input voltage: 100V–480V
• Dimmable to <10% with compatible dimmable power supplies
• Control: 0-10V / MLV / ELV dimming, DMX
• Power supply options: hardwired 0-10V, ELV, DMX/DALI, RF dimmable plug-in, inline dimmable plug-in
• Wire gauge: 20GA for white, 24GA for color

Color Configurations

• Static White — 1800K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 6000K, 6500K, 7500K
• Color Tunable — full-range tunable white
• RGBW — full RGB color spectrum plus a dedicated white channel
• CRI 90+

Backer Options

• Standard (No Backer) — the base configuration and the most economical option for standard interior installations
• Metal Backer — 1.8–2 mm white aluminum composite board, max size 60″ × 120″, for added rigidity and durability in demanding or high-traffic installations
• Acoustic Backer (Coming Soon) — 12 mm (0.47″) white polyester-fiber felt, NRC 0.70, for lounges, restaurants, and wellness spaces; no impact on wattage or wiring

Applications

• Hotel and casino lobbies — backlit feature walls and ceilings

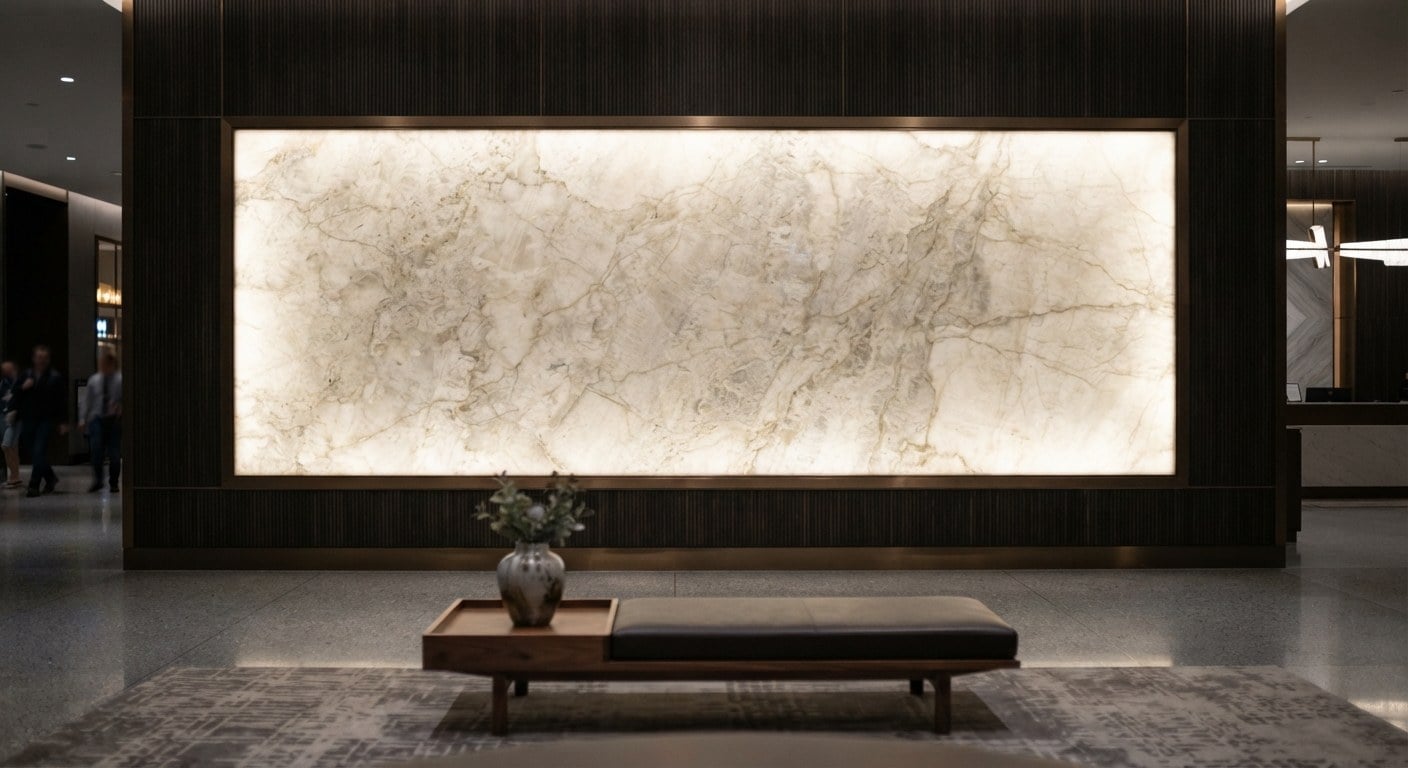

• Restaurants and bars — backlit stone, onyx, and decorative feature walls
• Retail — illuminated storefronts, ceilings, and light boxes
• Commercial interiors — reception walls and branded surfaces
• Spas, wellness, and healthcare — soft, even ambient ceilings

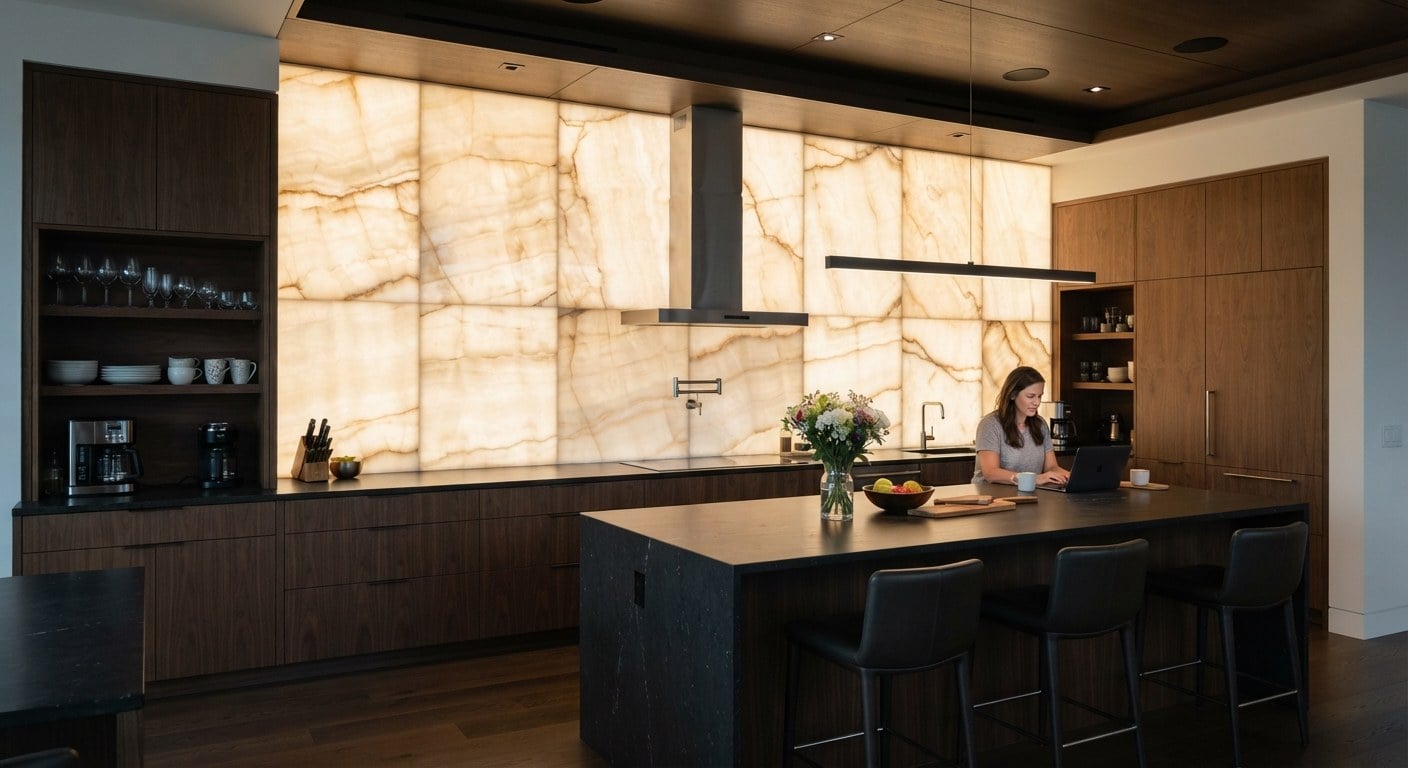

• Luxury residential — kitchens, baths, and custom feature walls

Product Specifications

Specifications

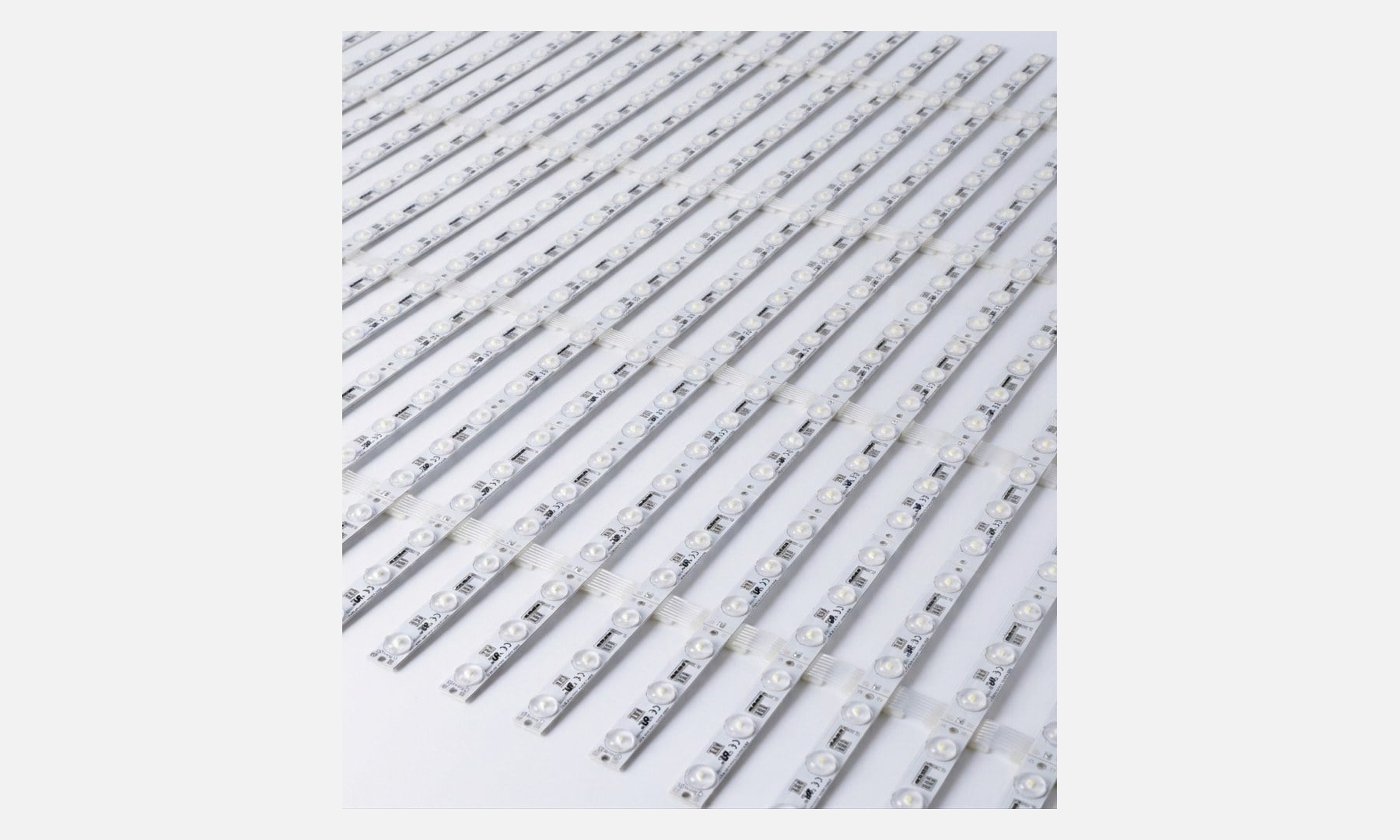

System: Backlit LED strip matrix — evenly spaced LED strips
Configurations: Static White, Color Tunable, RGBW
Unit Size: 1960 × 2438 mm (77″ × 96″) — combine units for larger installations
Strip Length: 980 mm (38.5″)
LEDs per Strip: Static 14 | Tunable 21 | RGBW 28
Strip Spacing: Static & Tunable 70 mm | RGBW 50 mm
Cuttable Sections: Static & Tunable 140 mm | RGBW 70 mm
Wattage: Static 10 W/sq ft | Tunable 14 W/sq ft | RGBW 6 W/sq ft
Luminous Output: 200–1,800 lm/sq ft
Efficacy: 150–200 lm/W
CRI: 90+
Voltage: 24VDC
Driver Input Voltage: 100V–480V
Dimming: to <10% — 0-10V / MLV / ELV, DMX
Wire Gauge: 20GA white, 24GA color
Weight: 1.2 lbs/sq ft
Operating Temperature: -13°F to 158°F
Beam Angle: 116° (50%)
Lifetime: 50,000+ hours (~12 years at 12 hrs/day)
Backers: None (standard), Metal (1.8–2 mm aluminum composite, max 60″ × 120″), Acoustic (coming soon)
Certifications: UL listed (E480527), UL recognized (E467626), RoHS
Warranty: 5 years, per EOS warranty policy
